Barway Mini Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock

Name: Barway Mini Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock
Brand: Barway
Price: 55.00 USD

Buy cheap Barway Mini Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock product

Brand Name : Barway

Place of Origin : Jiangsu, China

Certification : CE

Packaging Details : Foam wrap inside
Cardboard box parcel outside

Price : $55.00/pieces 1-199 pieces

Private Mold : NO

Products Status : Stock

Type : Barcode Scanner

Scan Element Type : CCD

Colour Depth : 32 Bit

Interface Type : usb

Max Paper Size : A4

Optical Resolution : 4 miles

Scan Speed : 200times/sec

Warranty(Year) : 3-Year

After-sales Service : Return and Replacement, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support

Software development kit (SDK) : Yes

Product name : Barcode scanner

Application : Logistics Industry

Scan Mode : Manual

Scan type : UPC/EAN/CODE 39 etc

Advantage : Barcode Scanners Optional

Contact Now

Barway Mini Portable Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock Manual Minno Apex 6 Scanner 4 Miles 32 Bit

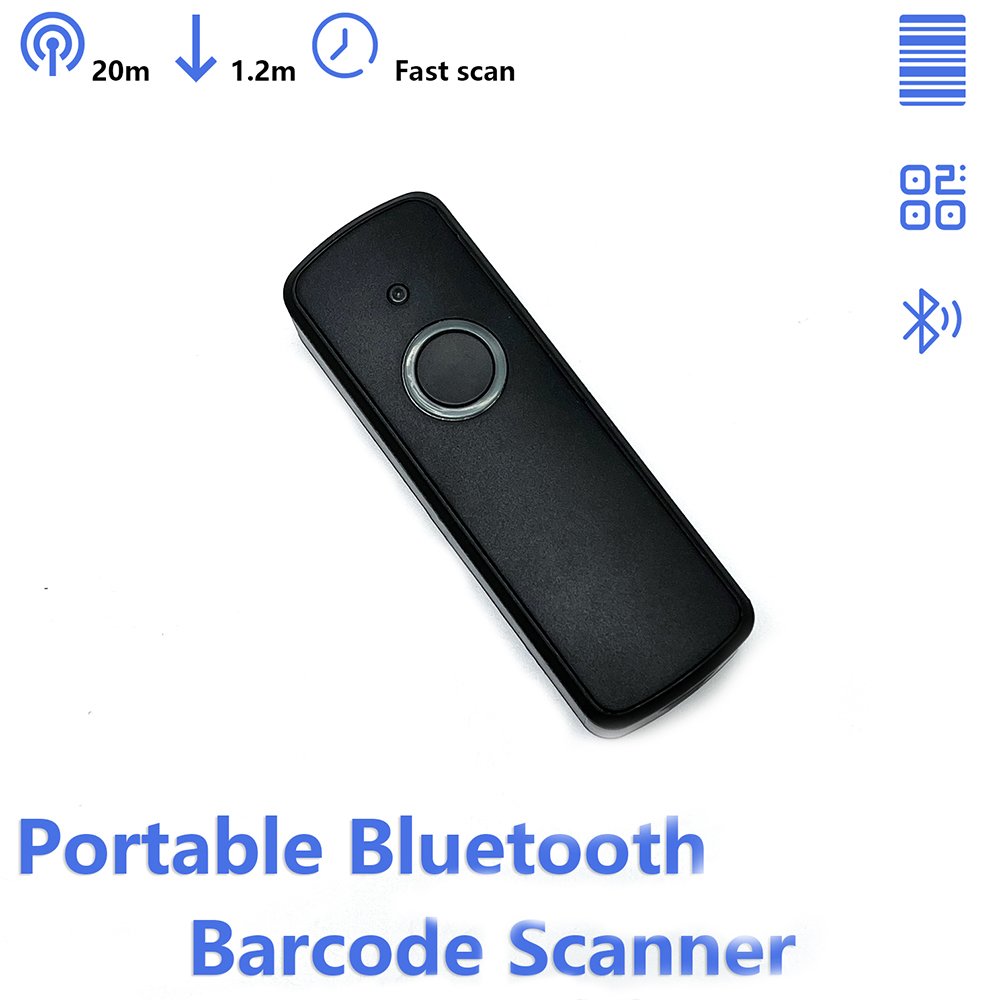

WP80 2D Barcode Scanner Product features

*It can interpret various one-dimensional codes / two-dimensional codes, directly transmit Chinese two-dimensional codes, and wireless BT is 20 meters wide

512,000 characters can be stored in offline / inventory storage mode

It can be directly paired with mobile phones, tablets and laptops with BT function

Barway Mini Barcode Scanner For 1D 2D QR Barcode Usb CE A4 CCD Stock

How to use the scanner ?

1. Press the button, when the blue light is on, the scanner starts.
2. Plug the receiver to your computer, the blue light is on, the receiver starts to work.
3. Please match the receiver and the scanner within 30 seconds!
4. Open a text, Scan any barcode to see if the barcode can be uploaded.

Two Scan Mode:

Instant upload mode:Scan the bar code, the data will be uploaded to your device in sync
Storage mode: Scan the bar code and store the data inside the built-in storage of scanner, and then upload the data to your device
when you need it.

performance parameter
Image sensor	617nm led aiming light, white LED illumination light
Decoding capability	1D: code128ean-13 / isbnisnncode32ean-8, UPC-A UPC-E,UCC/EAN-128Code39CodabarCode93, Interleaved2of5. Industrial2of5/Stander2of5/IATA2of5 Matrix2of5Code11MSIPlesseyUKGS1DataBar. GS1 DataBarLimitGS1DataBarExpand,Datalogic2of5. 2D: QRcode, datamatrixpdf417, MicroPDF417, aztecode, direct transmission to Chinese
Resolution	640 * 480
Trigger mode	manual scanning / continuous scanning / automatic induction scanning scanning angle: angle 360 ° elevation ± 55 ° deflection ± 55 scanning accuracy: ≥ 5MIL contrast: ≥ 20%
Scanning depth of field	ean1325-150mm (13mil90% PCs); QR 10-120mm (15mil30 bytes); PDF14730-110mm (667mil30 bytes)
Bit error rate	1 / 5 million
Wireless communication mode	paired mobile BT device: BT BLE4.0 wireless transmission distance: 20m (open)
Inventory storage mode	offline storage mode: automatically store data when the scanning gun leaves the connection range, and the storage capacity is 512000 characters
Physical parameters
Size	90mm * 30MM * 21mm (L x W x H)	Material	ABS+PC
Cable standard	0.8m
Environmental parameters
Working temperature	-20 ℃ ~ 50 ℃ storage temperature: - 40 ℃ ~ 70 ℃
Relative humidity	5% ~ 95% (non condensing)
Seismic capacity	it can withstand multiple 12m free falls
Electrical Parameters
Voltage	dc5v5%	Standby current	0ma
Battery charging time	2.5h	Battery working time	4h
Lithium battery	800mA
Charging mode	type charging line, plug-in direct charging
Maximum working current (maximum)	200mA
